Product media upload

Choosing how to upload media​

The Integration API offers two ways of uploading media:

  • Batch upload with createMediaBatch – recommended for product media. You pass up to 100 image URLs in a single mutation, and Centra downloads, processes and assigns them to products and variants for you, asynchronously. There is no need to handle files or S3 requests in your integration, and it scales well for large catalogs.
  • Individual file upload with createMediaUpload – you upload each file yourself to S3 using a pre-signed POST policy, and then assign it with a separate mutation. It takes three steps per file, so use it only when the batch upload can't be used:
    • The file isn't accessible by a URL, e.g. it's a local file or it lives behind authentication. The batch upload requires images to be publicly accessible on the Internet.
    • You're uploading an image or a file for a custom attribute (image and file attribute elements). These accept only the uploadUUID of an individually uploaded file, see Uploading individual images to static (mapped) custom attributes.

In all other cases, use the batch upload.

Create a new batch upload​

To initiate a new batch, call the createMediaBatch mutation (required permission: MediaBatch:write).

There is only one requirement: imported images must be accessible via the Internet by a URL.

mutation createMB {
createMediaBatch(
input: {
productMedia: [
{
productId: 1
variantId: 1445
url: "https://picsum.photos/id/1072/3872/2592"
metaDataJSON: "{\"my-data\": \"Anything can go here\"}"
}
{ productId: 1, url: "https://picsum.photos/id/1003/1181/1772" }
]
}
) {
queueId
userErrors {
message
path
}
}
}

A few important notes:

  1. You can connect media directly to a product variant if it only applies to one variant.

  2. The maximum number of media to be imported at once is 100.

  3. The media sort order within a single upload will follow the order of the URLs provided in the mutation. This order applies only to the batch being uploaded and does not affect or re-sort media that was uploaded previously.

  4. You can add your own metadata and later read it back from a ProductMedia object. Metadata should be a JSON object (not a list or a scalar), but the keys can store any type of value.

  5. Each item can have an altText, which will be saved on the created ProductMedia.

  6. Save the queueId value returned from the mutation if you want to check the progress.

Beside your own values, the product media metadata will have some additional keys added automatically by this process. They are especially useful to determine, whether given ProductMedia is the same image you want, or not.

  • originalUrl – the imported url.
  • originalSha1 – an SHA-1 checksum of the original file contents.
  • originalWidth + originalHeight – dimensions of the originally uploaded image.

Check the batch status​

Because processing of your batch upload is asynchronous, you may want to check its progress (required permission: MediaBatch:read).

query MBstatus {
mediaBatch(queueId: "acd5518727f54c5c9a5b2e31d6d742d2") {
# insert your queueId
status
productMedia {
productId
variantId
mediaType
url
key
completed
}
}
}

Possible statuses:

  • PENDING – the batch is still being processed.
  • COMPLETED – all items were created.
  • FAILED – not all items were created within 5 minutes from the start of the batch.
  • INVALID – the queueId is unknown or malformed, or the batch is no longer available.

The completed flag on each item in productMedia shows whether that item has been created.

Fetch the new media from a product query​

When your batch is COMPLETED, you should see the new media on a product:

query lastMedia {
product(id: 1) {
media(sort: id_DESC, limit: 1) {
id
source(sizeName: "standard") {
mediaSize {
name
quality
maxWidth
maxHeight
}
url
mimeType
}
metaDataJSON
}
}
}

Add media to displays and arrange their order​

This applies to product media created with either of the upload methods.

When creating or modifying displays, you can add product media to your display with addProductMedia: [{productMedia: {id: …}}] (optionally with before to set its position):

mutation {
createDisplay(
input: {
name: "display-name"
status: ACTIVE
store: { id: 1 }
product: { id: 1 }
addProductMedia: [{ productMedia: { id: 467 } }]
}
) {
userErrors {
message
path
}
display {
id
media {
id
}
}
}
}

Later you can manipulate and re-order these productMedia objects as necessary:

mutation {
updateDisplay(
id: 1234
input: {
addProductMedia: [{ productMedia: { id: 469 }, before: { id: 466 } }]
removeProductMedia: [{ id: 467 }]
}
) {
userErrors {
message
path
}
display {
id
media {
id
}
}
}
}

Uploading individual files using AWS S3 pre-signed POST​

Use this method only when the batch upload isn't an option: for files that aren't accessible by a URL, and for custom attribute images and files.

AWS Pre-signed POST data enables direct uploads to S3 storage in a controlled and safe way.

The client requests a pre-signed POST policy containing the URL and data fields required to prepare multipart/form-data POST request to upload a file directly to S3. S3 responds with a success confirmation or error message if the upload fails.

The policy expires after 20 minutes.

How does it work with GraphQL Integration API:​

Product media upload flow consists of 3 steps.

  1. Obtain the policy from Integration API mutation,
  2. Upload file to S3 using that policy,
  3. Assign uploaded file to a proper object - either Product or ProductVariant.

Centra removes uploaded files that are not assigned to a Product or ProductVariant within 2 days.

Required permission is ProductMedia:write

Product media upload flow:​

  • Use createMediaUpload mutation to obtain pre-signed POST policy along with unique identifier of the file.
  • Use policy data to construct an upload request with your file to S3 (see code examples).
  • After successful upload use completeMediaUpload mutation with the unique identifier to assign uploaded media to proper Product or ProductVariant. If your file wasn't uploaded successfully and cannot be found by given identifier, the mutation will fail.
mutation {
completeMediaUpload(
input: {
UUID: "4573c32c27e05fce541ed2d4b75a5904" # UUID returned by createMediaUpload
name: "my-product-image"
format: JPG
objectId: 1
objectType: Product
altText: "Optional alt text"
}
) {
productMedia {
id
}
userErrors {
message
path
}
userWarnings {
message
path
}
}
}
  • objectType is either Product or ProductVariant, and objectId is the ID of that object.
  • name can only contain letters, digits, - and _.

Notes​

  • Set the Content-Type field to the file's MIME type before the file input in the form data.
  • Supported file formats are png, jpg and gif.
  • Successful response from S3 file upload request is indicated by 204 status code.

Code examples:​

  • JavaScript upload function using XHR request:
const uploadFile = (uploadPolicy, file) => {
return new Promise((resolve, reject) => {
const formData = new FormData();
uploadPolicy.fields.forEach(field => {
formData.append(field.name, field.value);
});
const actionAttribute = uploadPolicy.attributes.find(
attribute => attribute.name === 'action'
);
const url = actionAttribute.value;
formData.append('Content-Type', file.type);
formData.append('file', file);
const xhr = new XMLHttpRequest();
xhr.open('POST', url, true);
xhr.send(formData);
xhr.onload = function () {
this.status === 204 ? resolve() : reject(this.responseText);
};
});
};
  • HTML template with dynamically created media upload form:
<!DOCTYPE html>
<html>
<head>
<title>Test AWS s3 pre-signed post form media upload</title>
<style type="text/css">
body {
margin: 50px auto;
text-align: center;
width: 33%;
}
div {
margin-top: 15px;
}
tt {
padding: 2px 4px;
background-color: #eee;
border: 1px solid #aaa;
border-radius: 5px;
}
#gql-form {
width: 100%;
text-align: left;
}
#gql-input {
width: 100%;
height: 300px;
}
#uuid-container {
width: 250px;
line-height: 2.5em;
text-align: center;
background-color: #eee;
border: 1px solid #aaa;
border-radius: 5px;
}
</style>
</head>

<body>
<form id="gql-form">
<h3>Usage</h3>
<ol>
<li>
Call `createMediaUpload` mutation, eg:
<pre>
mutation {
createMediaUpload(
input: {
mediaType: IMAGE
}
) {
UUID
uploadPolicy {
attributes { name value }
fields { name value }
}
userErrors { message path }
}
}
</pre
>
</li>
<li>Copy response and paste in the input below</li>
<li>Use <tt>Generate Form</tt> button to create an upload form</li>
<li>
Once the form is generated, select file using
<tt>Choose File</tt> button and then click <tt>upload</tt>
</li>
</ol>
<h3>Generate upload form</h3>
<label for="gql-input">Paste GraphQL response:</label><br />
<textarea id="gql-input"></textarea><br />
<button type="submit">Generate Form</button>
</form>
<div>
<b>UUID:</b><input type="text" readonly="readonly" id="uuid-container" />
</div>
<div id="test-form-container"></div>

<script>
function generateForm(e) {
e.preventDefault();
let input = document.getElementById('gql-input');
let parsed = JSON.parse(input.value);
if (parsed === false) {
console.error('Invalid response -- not a valid JSON');
}
createForm(parsed);

return false;
}

window.onload = function exampleFunction() {
document
.getElementById('gql-form')
.addEventListener('submit', generateForm);
};

function createForm(gqlResponse) {
let formContainer = document.getElementById('test-form-container');
formContainer.innerHTML = '';
document.getElementById('uuid-container').value =
gqlResponse.data.createMediaUpload.UUID;
let policy = gqlResponse.data.createMediaUpload.uploadPolicy;
let formAttributes = policy.attributes;
let formInputs = policy.fields;

var form = document.createElement('form');
formAttributes.forEach(function (attr) {
form.setAttribute(attr.name, attr.value);
});

formInputs.forEach(function (input) {
let inputElem = document.createElement('input');
inputElem.setAttribute('type', 'hidden');

inputElem.setAttribute('name', input.name);
inputElem.setAttribute('value', input.value);

form.appendChild(inputElem);
});

let fileInput = document.createElement('input');
fileInput.setAttribute('type', 'file');
fileInput.setAttribute('name', 'file');
form.appendChild(fileInput);

let submit = document.createElement('input');
submit.setAttribute('type', 'submit');
submit.setAttribute('value', 'upload');
form.appendChild(submit);

fileInput.addEventListener('input', function (e) {
let inputElem = document.createElement('input');
inputElem.setAttribute('type', 'hidden');
inputElem.setAttribute('name', 'Content-Type');
inputElem.setAttribute('value', fileInput.files[0].type);
form.insertBefore(inputElem, fileInput);
});

formContainer.appendChild(form);
}
</script>
</body>
</html>

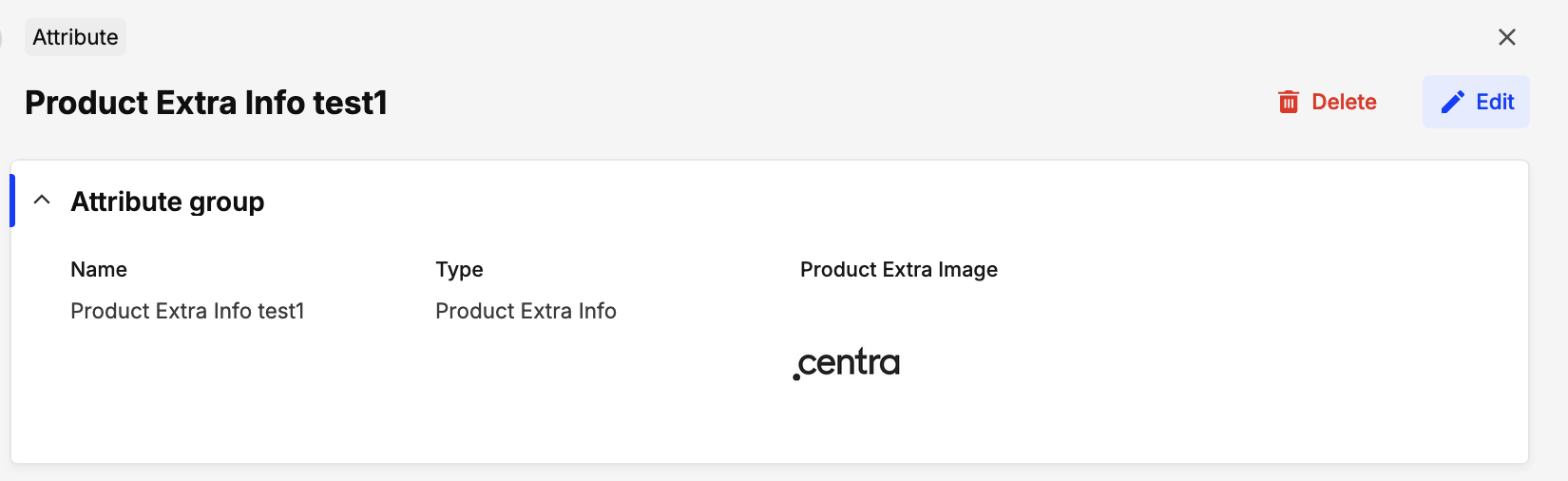

Uploading individual images to static (mapped) custom attributes​

Another use case when you would like to upload images would be to add them to your static custom attributes, like Showroom Swatches. Image and file attribute elements only accept files uploaded individually with createMediaUpload (referenced by their uploadUUID), so the batch upload can't be used here. Let's take a simple attribute for example:

pr_extra_info

{
"desc": "Product Extra Info",
"readonly": true,
"group": "product",
"elements": {
"image": {
"desc": "Product Extra Image",
"type": "image",
"size": "0x0"
}
}
}

Let's start by fetching the attribute definition, to make sure it's available in GQL:

Get attribute definition information​

query attributeTypes {
attributeTypes(where: { name: { equals: ["pr_extra_info"] } }) {
name
description
isMapped
isMulti
objectType
elements {
key
description
kind
isMulti
paramsJSON
}
}
}

Response:

{
"data": {
"attributeTypes": [
{
"name": "pr_extra_info",
"description": "Product Extra Info",
"isMapped": true,
"isMulti": false,
"objectType": "Product",
"elements": [
{
"key": "image",
"description": "Product Extra Image",
"kind": "IMAGE",
"isMulti": false,
"paramsJSON": "{\"size\":\"0x0\"}"
}
]
}
]
},
"extensions": {
"complexity": 2,
"permissionsUsed": ["Attribute:read"],
"appVersion": "v1.82.0"
}
}

Now, let's upload the media that we wish to assign to the attribute. For that purpose we will create a media upload policy that will later accept the uploaded file:

mutation mediaUploadTest {
createMediaUpload(input: { mediaType: IMAGE }) {
UUID
uploadPolicy {
attributes {
name
value
}
fields {
name
value
}
}
userErrors {
message
path
}
userWarnings {
message
path
}
}
}

Response:

{
"data": {
"createMediaUpload": {
"UUID": "4573c32c27e05fce541ed2d4b75a5904",
"uploadPolicy": {
"attributes": [
{
"name": "action",
"value": "https://centra-webinar-silk-staging.s3.eu-west-1.amazonaws.com"
},
{
"name": "method",
"value": "POST"
},
{
"name": "enctype",
"value": "multipart/form-data"
}
],
"fields": [
{
"name": "acl",
"value": "private"
},
{
"name": "key",
"value": "media/client/dynamic/temp/4573c32c27e05fce541ed2d4b75a5904"
},
{
"name": "X-Amz-Credential",
"value": "AKIARA6PLGVYP5LNTAHT/20240619/eu-west-1/s3/aws4_request"
},
{
"name": "X-Amz-Algorithm",
"value": "AWS4-HMAC-SHA256"
},
{
"name": "X-Amz-Date",
"value": "20240619T121408Z"
},
{
"name": "Policy",
"value": "eyJleHBpcmF0aW9uIjoiMjAyNC0wNi0xOVQxMjozNDowOFoiLCJjb25kaXRpb25zIjpbeyJhY2wiOiJwcml2YXRlIn0seyJidWNrZXQiOiJjZW50cmEtd2ViaW5hci1zaWxrLXN0YWdpbmcifSxbImVxIiwiJGtleSIsIm1lZGlhXC9jbGllbnRcL2R5bmFtaWNcL3RlbXBcLzQ1NzNjMzJjMjdlMDVmY2U1NDFlZDJkNGI3NWE1OTA0Il0sWyJzdGFydHMtd2l0aCIsIiRDb250ZW50LVR5cGUiLCIiXSx7IlgtQW16LURhdGUiOiIyMDI0MDYxOVQxMjE0MDhaIn0seyJYLUFtei1DcmVkZW50aWFsIjoiQUtJQVJBNlBMR1ZZUDVMTlRBSFRcLzIwMjQwNjE5XC9ldS13ZXN0LTFcL3MzXC9hd3M0X3JlcXVlc3QifSx7IlgtQW16LUFsZ29yaXRobSI6IkFXUzQtSE1BQy1TSEEyNTYifV19"
},
{
"name": "X-Amz-Signature",
"value": "68df754455158a673f6fbe400f0407b7f53c58c5b37446a3c9d07f75ff327a08"
}
]
},
"userErrors": [],
"userWarnings": []
}
},
"extensions": {
"complexity": 8,
"permissionsUsed": ["ProductMedia:write"],
"appVersion": "v1.82.0"
}
}

Now you must upload your image file to that UUID. Use our example of a simple website linked under the "Notes" above.

When you submit your createMediaUpload response, you can then choose the file to be uploaded. Select the file, click "Upload". This will upload your file directly to the right S3 bucket.

Once done, you can then assign your UUID as the image parameter on the new custom attribute. The examples below use the attributeData fragment, which you need to include in the same request:

fragment attributeData on MappedAttribute {
id
name
type {
name
}
elements {
key
description
kind
... on AttributeImageElement {
url
height
width
mimeType
}
}
}
mutation createAttribute {
createAttribute(
input: {
attributeTypeName: "pr_extra_info"
name: "Product Extra Info test1"
imageElements: [
{ key: "image", uploadUUID: "4573c32c27e05fce541ed2d4b75a5904" }
]
}
) {
attribute {
...attributeData
}
userErrors {
message
path
}
userWarnings {
message
path
}
}
}

Response:

{
"data": {
"createAttribute": {
"attribute": {
"id": 30,
"name": "Product Extra Info test1",
"type": {
"name": "pr_extra_info"
},
"elements": [
{
"key": "image",
"description": "Product Extra Image",
"kind": "IMAGE",
"url": "http://centra-webinar.centraqa.com/client/dynamic/attributes/4573c32c27e05fce541ed2d4b75a5904.jpg",
"height": null,
"width": null,
"mimeType": "image/jpg"
}
]
},
"userErrors": [],
"userWarnings": []
}
},
"extensions": {
"complexity": 4,
"permissionsUsed": ["Attribute:write", "Attribute:read"],
"appVersion": "v1.82.0"
}
}

As you can see in AMS backend, attribute now exists with the uploaded image:

You can now assign this attribute (id: 30) to your products.

One more thing: You can also first create the attributes, and later upload the images to them. To create an empty attribute without an image, simply pass null as uploadUUID:

mutation createAttribute {
createAttribute(
input: {
attributeTypeName: "pr_extra_info"
name: "Product Extra Info test2"
imageElements: [{ key: "image", uploadUUID: null }]
}
) {
attribute {
...attributeData
}
userErrors {
message
path
}
userWarnings {
message
path
}
}
}
